ECI Low Voltage Cable ldentifier

Product Description

Tanbos

 Launching ECI 100% Correct Easy Operation Low Voltage Cable Identifier something is must-have any electrician or professional using voltage low. This process this is built this is revolutionary quickly and accurately find out cables in a protected and method in efficient working out for you spend less and time in any office.

 The ECI Cable Identifier is easy to execute having a push-button easy which in turn causes that it is very easy to start right away. The item can recognize cables with voltages from 6V to 400V that makes it ideal for a mixture this is wide of. TheTanbos merchandise was indeed made to be portable and lightweight causing the well suited for on-the-go use. Perhaps one of the most impressive popular features of this ECI Cable Identifier is its 100% appropriate recognition cost. This implies it offers promoting reassurance and decreasing the likelihood of errors or mishaps as possible be confident to the accuracy regarding results.

 A benefit this is extra is obviously key of ECI Cable Identifier is its voltage this is procedure low eliminates the chance of electric shock and guarantees safety to suit your needs along with your team. This is especially important whenever time use making of real as possible dangerous in order to find out cables manually without the gear right. Overall, the Tanbos ECI 100% Proper Easy Operation Low Voltage Cable Identifier is obviously a unit this might be vital any electrician or professional working with low voltage cables. Which consists of simpleness accuracy and protection features it is particular to create directly into an asset valuable any task site.

 Why wait? Spend money on the ECI Cable Identifier and have the convenience and effectiveness it gives today

ECI Low Voltage Cable ldentifier supplier

Introduction:

Identifying a certain cable correctly from a bunch of cables is a common tech question. Cable identifying will avoid severe damage resulting from sawing wrong cable. Cable identifying usually need professional person proceed from 2 ends of cable, and make sure the two serious numbers are correct. But, human memory is not as reliable as professional device at any time in any circumstance.
ECI is applicable for identifying low voltage live cable 220V/380V, and the identification of low voltage section.
It can identify the target cable and low-volt section without power off. 100% correct result under correct method.
Features:

ECI Low Voltage Cable ldentifier factory

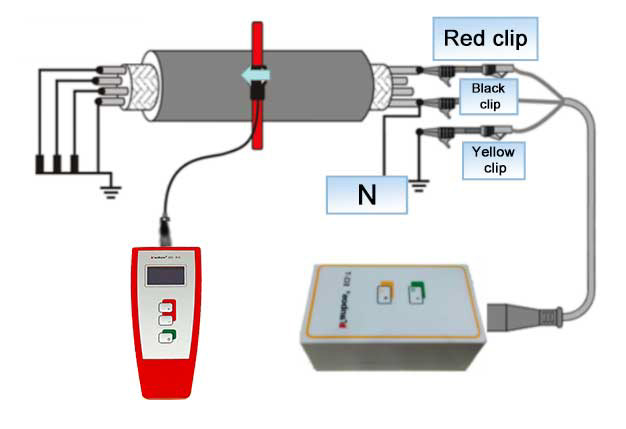

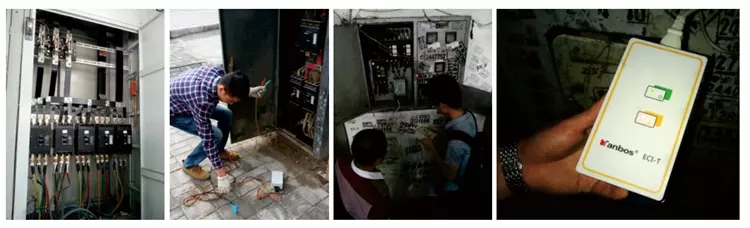

On-site application:

ECI Low Voltage Cable ldentifier manufacture

Transmitter (ECI-10T)
Working voltage
AC 220V, 50Hz
Periodic impulse current
180A±10A
Impulse frequency
30 times/min
Display mode
RED/GREEN LED
Power supply
Lithium battery
Weight
500g
Size
158 x 90 x 60 (mm)

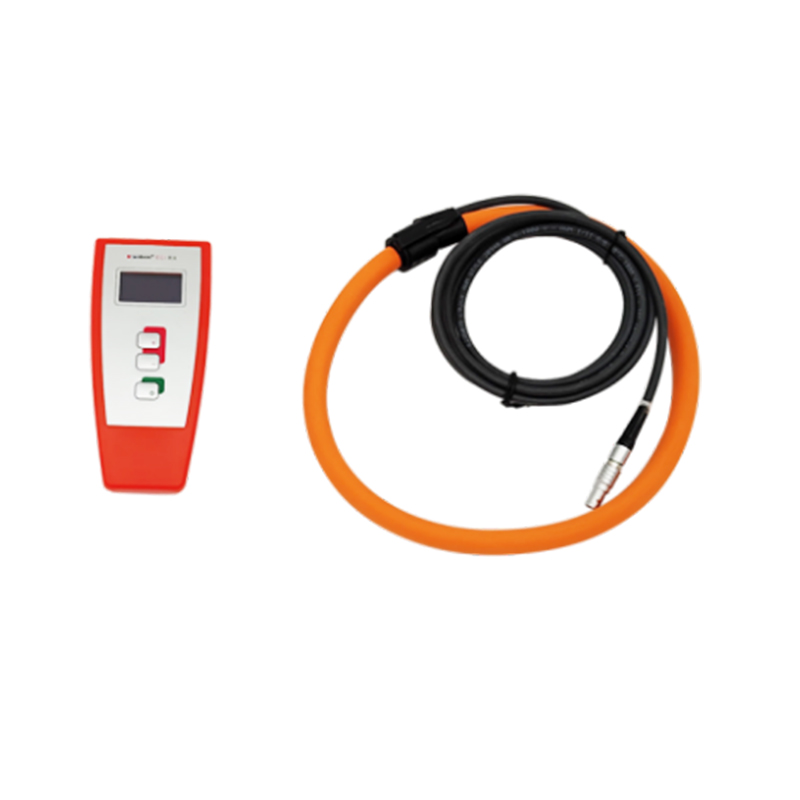

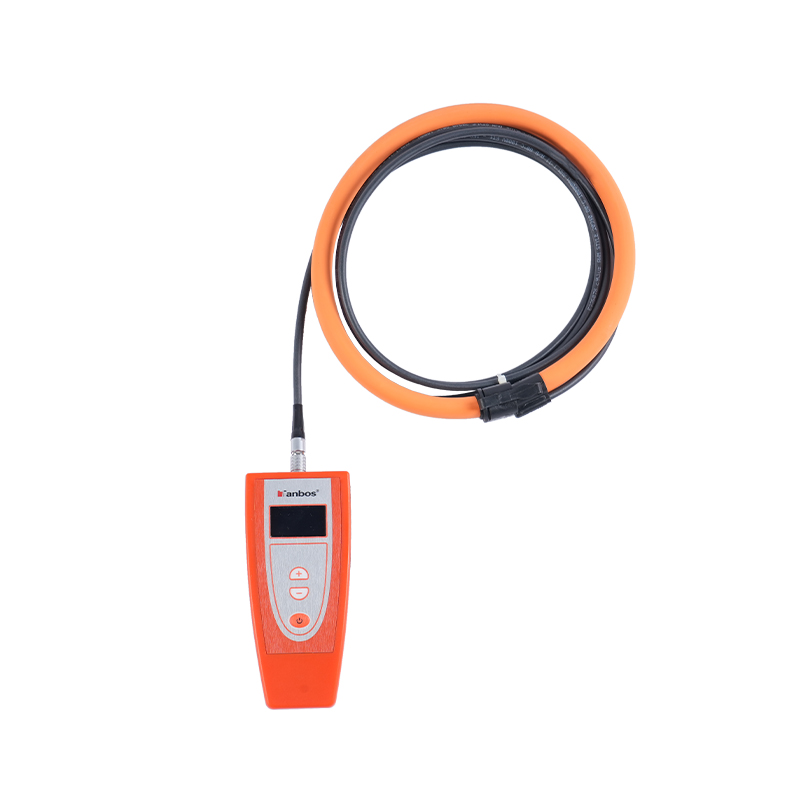

Receiver (ECI-10R)
Display
LCD screen indicates the target cable (target cable)
LCD screen indicates non-target cable (no signal)
Keys press mode
Touch button
Gain
10gears (-3dB to +24 dB)
Power supply
2 x 1.5V AA
On-site use time
>60hours
Clamp
Flexible clamp
Weight
400g (with clamp and battery)
Size
118 x 78 x 24 (mm)

ECI Low Voltage Cable ldentifier manufacture

ECI Low Voltage Cable ldentifier details

ECI Low Voltage Cable ldentifier manufacture

ECI Low Voltage Cable ldentifier manufacture

ECI Low Voltage Cable ldentifier details

ECI Low Voltage Cable ldentifier supplier
